Name	LCD Curved Touch Monitor
LCD panel	Diagonal Size	23.6-Inch	32-Inch	39-Inch	43-Inch	49-Inch	55-Inch
	Aspect Ratio	16:9	16:9	16:9	16:9	16:9	16:9
	Resolution	1920 x 1080@60Hz	1920 x 1080@60Hz	2560x 1440@ 60Hz	3840x 2160@60Hz	3840x 2160@60Hz	3840x 2160@60Hz

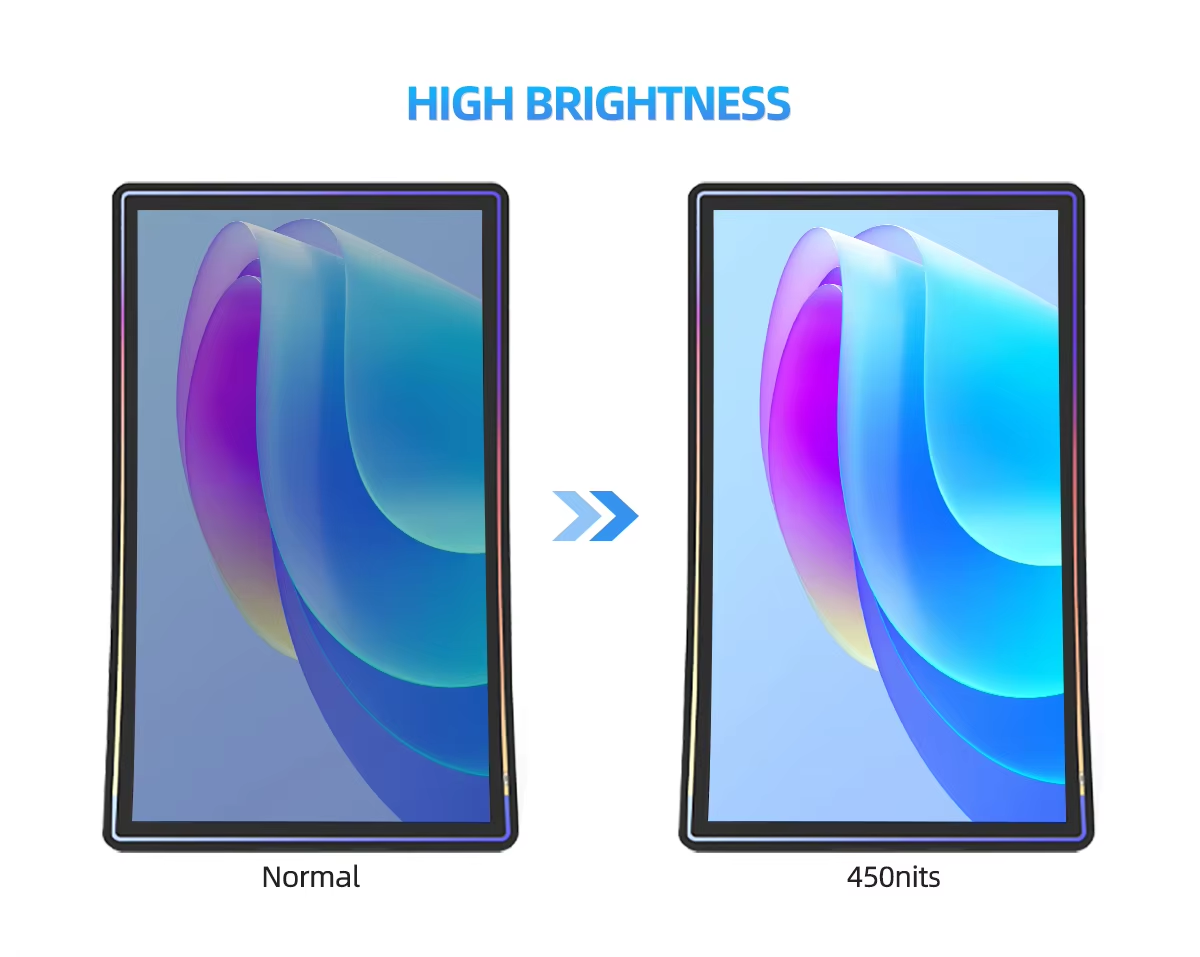

	Brightness	300nits	300nits	400nits	400nits	500nits	500nits
	Contrast Ratio	1500:1	3000:1	3000:1	1100:1	1100:1	1100:1
	Display Colors	16.7M	16.7M	16.7M	16.7M	1.07B	1.07B
	Response Time (Typ.)	10ms	15ms	30ms	20ms	15ms	20ms

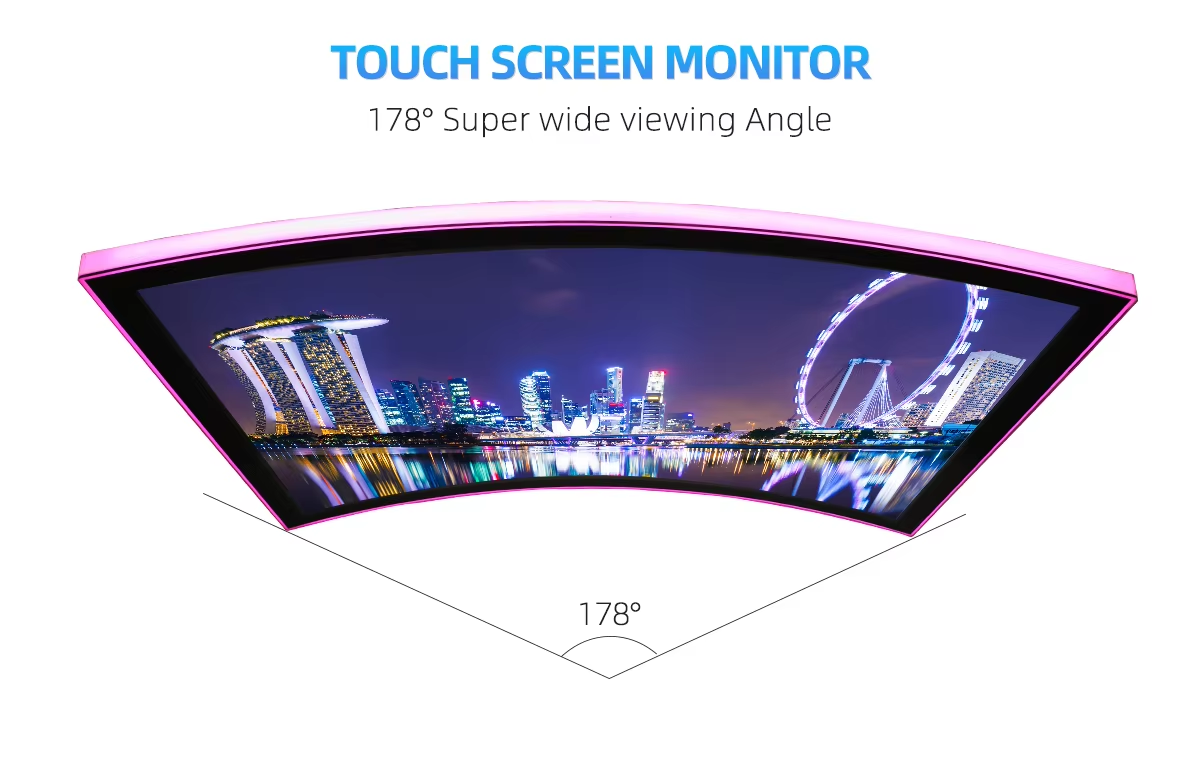

	Viewing Angle	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°	Horizontal: CR≥10 89°/89° Vertical: CR≥10 89°/89°
	Active Area	521.395mm(H) x 293.284mm(V)	698.4mm(H) x 392.85mm(V)	852.48mm(H) x 479.52mm(V)	920.5mm(H) x 529.4mm(V)	1073.78mm(H) x 604mm(V)	1209.6mm(H)x 680.4mm(V)
TP spec	Surface Treatment	Thermally Tempered Cover glass, Without AG

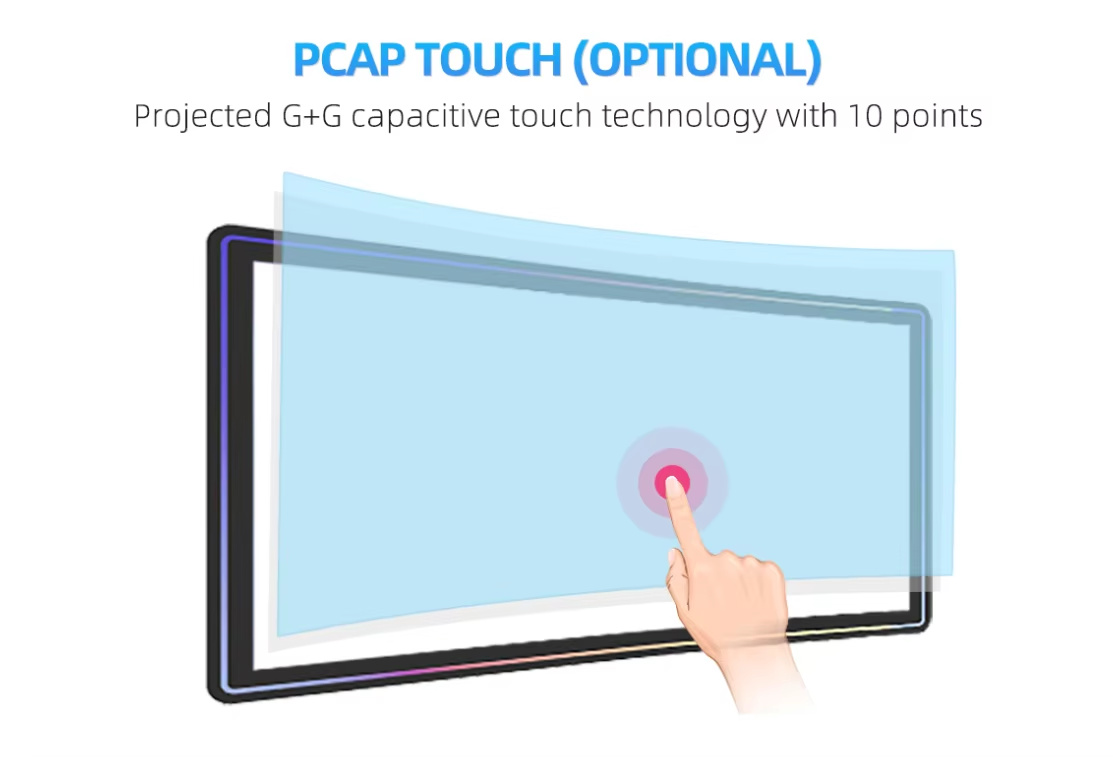

	Touch Technology	PCAP
	Touch Interfaces	USB
	Light Transmission	≥85%
	Touch Lifetime	>300,000,000 times
	Touch Point	10
	Power Supply	DC 12V 4A
	I/O Ports	HDMI1(input),VGA1,USB-B*1
	Power Consumption (Max.)	30W
	On Screen Display (OSD)	Control (External): Power, Auto, Up, Down, Menu
	Temperature Range	Operating: 0°C to 40°C , storage: -20°C to 60°C
	Temperature Range	-20°C to 60°C
	Humidity (Non Condensing)	Operating: 20% to 80%, storage: 10% to 90%
	Warranty	1-Year Optional
	Accessories	Cables: USB x 1, 1.5m Length,POWER CABLE+Adapter, HDMI Cable*1

Curved Display

Create a more special slot machine that deliver a multi-sensory slot experience by applying a curved display.

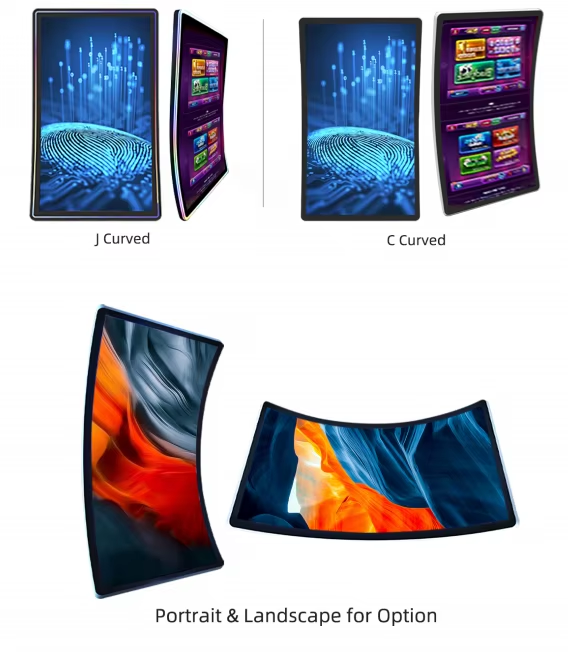

Various curvature implementations can be made according to customer request.

Applicable Size:23.6",32",39",43",49",55".

Curved Display Custom Solutions

We specialise in delivering high‑performance curved display modules and complete system solutions for a wide range of industries – from automotive cockpits and industrial control panels to medical devices and commercial interactive terminals. Our flexible customisation services ensure that every curved screen meets your exact project requirements.

Our customisation capabilities include (but are not limited to):

Non‑standard curvature & custom‑shaped cutting – Support for various radius of curvature (R500 ~ R4000) and non‑rectangular outlines, perfectly adapting to unique installation spaces.
High brightness & wide‑temperature operation – Brightness options from 500 to 3000 cd/m², with operating temperature ranges from -40°C to +85°C, suitable for outdoor, automotive, military, and other harsh environments.
Custom interface pin‑outs & cable lengths – Compatible with LVDS, eDP, MIPI, V‑by‑One, and other interfaces; FPC routing and connector definitions can be tailored to your design.
Custom housings & front bezels – Available in metal or plastic materials, with choice of colours, surface finishes, and ingress protection ratings (IP65 and above) to match your mechanical requirements.

Get your customised datasheet today

Simply reach out to our sales team with your project details – curvature, size, brightness, interface, environmental conditions, and any other special needs. We will provide you with a dedicated datasheet and one‑on‑one technical support to help you achieve the perfect fit.

From "functional" to "exactly what you need" – let’s make your curved display design a reality.

Touch Screen Dimensions
